Product Details:
Place of Origin: China
Brand Name: Cence / Xiangyi
Certification: CE, ISO9001, ISO13485
Model Number: CH260R
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $18300~$27400/set
Packaging Details: Plywood Case or Wooden Case
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 20sets/month

Swing Rotor Angle Rotor High Speed Centrifuge CH260R Floor Standing 26000rpm

Description
Max Speed: 26000r/min Max RCF: 80035xg
Max Capacity: 6x1000ml Time Range: 1min~99h59min
Temp. Range: -20℃~40℃ Speed Accuracy: ±10r/min
Power Supply: AC 220V±22V 50Hz/60Hz Power Consumption: 1.7kW
Noise: ≤65dB(A) Dimension(WxDxH): 73x93x96cm
Package Dimension(WxDxH): 88x112x118cm Net Weight: 260kg
High Light:

Swing Rotor High Speed Centrifuge

,

High Speed Centrifuge 26000rpm

,

Angle Rotor Floor Standing Centrifuge

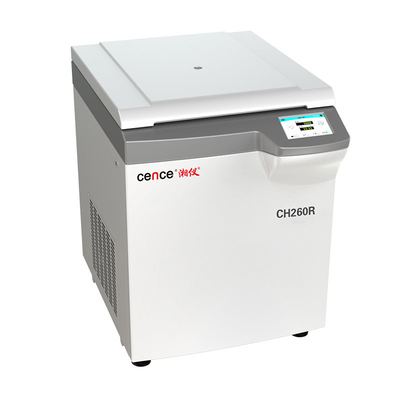

Swing Rotor Angle Rotor High Speed Centrifuge CH260R Floor Standing 26000rpm

Centrifuge CH260R has obtained a number of patented technologies.

It is the latest intelligent high-efficiency centrifuge developed by Xiangyi/Cence. Powerful system management function with different operation options for different applications greatly simplify the experiment management. 16 rotor options, which can separate and concentrate cytoplasm, virus bacteria and chemical substances.

It is widely used in high-tech fields such as molecular biology, biology and biochemistry.

Swing Rotor Angle Rotor High Speed Centrifuge CH260R Floor Standing 26000rpm 0


Product Advantages

1. Direct drive motor without replacing the belt.

2. The intelligent vacuum friction reducing system has a simple and effective sealing structure. The sealing part does not need to be coated with vacuum silicone grease, and all sealing parts do not need special maintenance.

3. New generation dynamic intelligent control system, user operate the centrifuge according to conventional centrifuge use method without additional operation.

4. Excellent energy consumption performance. Save up to 65% energy consumption compared with traditional centrifuge.

5. Adopt AC variable frequency motor, speed accuracy ± 10 r/ min. Unique motor bearing heat dissipation patent makes the motor bearing always work in the best state and greatly improves the service life of the motor. ( patent NO: zl201922481254.0 )

6. The flexible driving device of centrifuge with protection, which makes the rotor spinning extremely smoothly, meanwhile , continuously detect the unbalance state of the rotor in operation. Which greatly improve safety in centrifugation process. This technology has obtained national patent ( Patent NO: ZL201720768513.6 )

7. The centrifuge door lock with labor-saving operation and good safety has won national patent ( Patent NO: ZL201420116441.3 )

8. 316 stainless chamber and unique copper pipe configuration technology, not only make the refrigeration efficiency extremely high, but also the overall corrosion resistance is excellent ( Patent NO: ZL201720981827.4,ZL202020709292.7 )

9. The self-developed high-speed centrifuge bottle can not only bear high centrifugal force , but also disinfect at high temperature without deformation(121℃,15min), ( Patent NO: ZL201720768611.X )

10. Ergonomic height design ensure easy sample loading and unloading and easy cleaning.

11. Convenient installation of the rotor without the help of any tools, just put rotors on Rotor shaft without screw fixing or buttons' operation.

12. All the alloy aluminum rotor are forged with 7075 series alloy aluminum,hard oxidation on the surface and strong corrosion resistance.

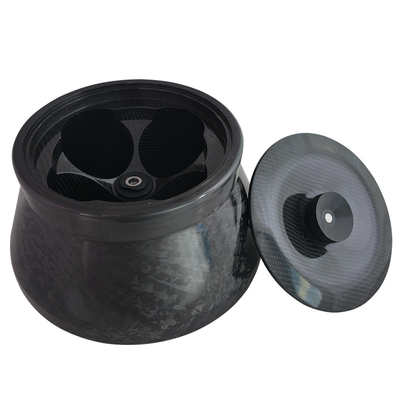

13. Improve productivity with new generation carbon fiber rotors, an advanced alternative to metal rotors, offering unequalled durability with fatigue- and corrosion-resistance for worry-free operation spin after spin.

14. Glove-friendly 7-inch HD touch screen , intuitive display and easy to operate . The setting parameters and running parameters can be displayed simultaneously.

15. Directly input the setting value without adjustment, more convenient compared with traditional knob operation.

16. Powerful control system offering the function of 5-steps gradient separation, sample ID, startup at appointed time, the mode of profiles, free choice of programs and multiple operation language option.

17. Strong safety performance, the user management function prevent programs from unexpected modification or deletion.

18. Safe and reliable centrifugation, max speed up to 26000rpm, and many rotors are available to choose from.




Product Parameters

Model CH260R
Rotor Type Angle Rotor Swing Rotor
Max Speed 26000r/min 4000r/min
Max RCF 80035xg 3500xg
Max Capacity 6x1000ml 4x750ml
Time Setting Range 1min~99h59min
Temperature Setting Range -20℃~40℃
Temperature Accuracy ±1℃
Speed Accuracy ±10r/min
Power Supply AC 220V±22V 50Hz/60Hz
Power Consumption 1.7kW
Noise ≤65dB(A)
Dimension(WxDxH) 73x93x96cm

Package Dimension(WxDxH)

88x112x118cm
Net Weight 260kg

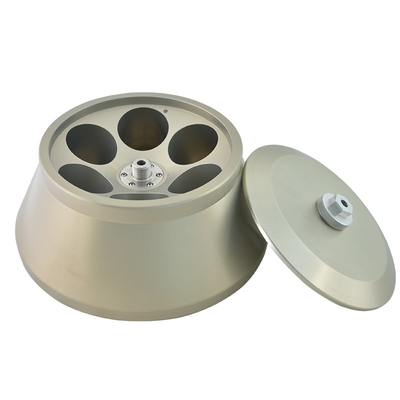

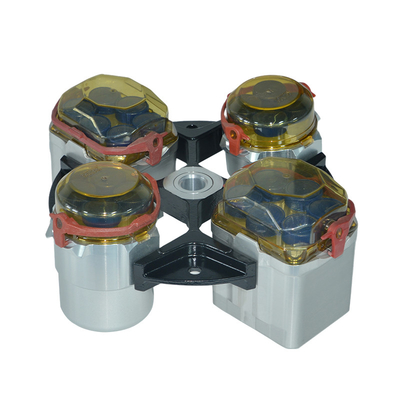

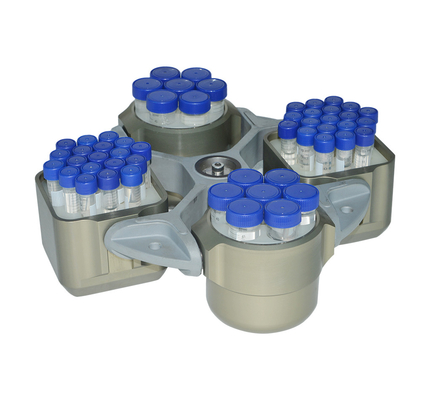

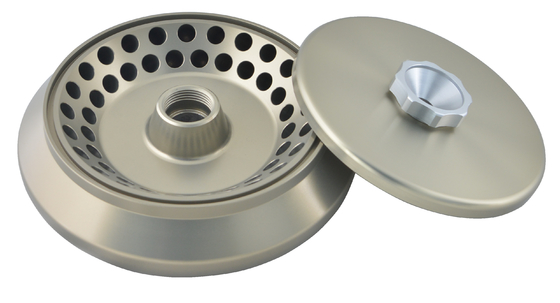

Rotor Parameters


Swing Rotor Angle Rotor High Speed Centrifuge CH260R Floor Standing 26000rpm 1
Swing Rotor Angle Rotor High Speed Centrifuge CH260R Floor Standing 26000rpm 2
Swing Rotor Angle Rotor High Speed Centrifuge CH260R Floor Standing 26000rpm 3
Swing Rotor Angle Rotor High Speed Centrifuge CH260R Floor Standing 26000rpm 4
Swing Rotor Angle Rotor High Speed Centrifuge CH260R Floor Standing 26000rpm 5
