MAC Tested High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed

MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed
MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed
MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed

Large Image :  MAC Tested High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed

Product Details:
Place of Origin: China
Brand Name: Cence / Xiangyi
Certification: ISO9001, ISO13485, CE
Model Number: CL8R
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $19850/set
Packaging Details: Plywood Case
Delivery Time: 6-10 work days
Payment Terms: Western Union, L/C, T/T, D/A, D/P
Supply Ability: 50sets/month

MAC Tested High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed

Description
Model: CL8R Max Speed: 9000r/min
Max Capacity: 8x2200ml Max RCF: 18610xg
Speed Accuracy: ±10r/min Temp. Range: -20℃~40℃
Noise: ≤70dB(A) Time Setting Range: 1min~99h59min
Power Consumption: 7.5kW Dimension(WxDxH): 88x100x100cm
Package Dimension(WxDxH): 108x131x134cm Net Weight: 575kg
High Light:

electric centrifuge machine

,

clinical lab centrifuge





MAC Tested High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed



CL8R super-large capacity refrigerated centrifuge is a new and smart centrifuge, which is jointly developed by the well-known centrifuge manufacturer and national key university, representing the world advanced level.



It has passed the MCA test and rotor service life test by authority agency in the United States.



Max capacity is up to 8x2200ml. It is the preferred product in the fields of blood bank, pharmacy and biological products.

.

MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed 0MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed 1

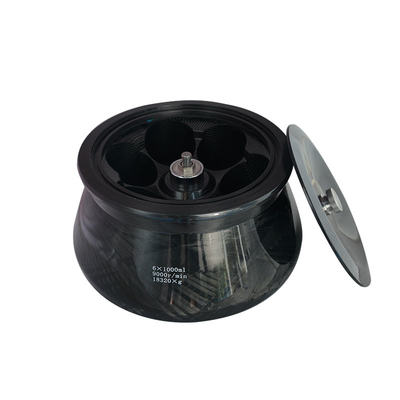

Carbon Fiber Rotor



The carbon fiber rotor, passed 100,000 times life service test in 2017, features light weight, chemical corrosion resistance, high mechanical strength, long service life, large capacity as well as high speed (Max speed 9000rpm with 6x1000ml angle rotor), providing high efficient and perfect product for bio-pharmacy, biological products, chemical industry etc.

MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed 2

Product Advantages



1. Automatic door locking system (optional)

The centrifuge door can be opened or closed by a single soft touch of a button.

Door lid come with intelligent anti pinch device.



2. Automatic suction device of centrifuging windshield (optional )

The windshield is sucked to the door lid when opened without labor intervention prevent it from falling down.



3. Safe Structure

The overall unit has passed MCA ( (Maximum Credible Accident test ),

After MCA is generated, the centrifuge door lid shall not be opened, and no solid greater than 0.5mm shall blown out of the centrifuge chamber, the position movement shall not exceed 30cm, ensure the personal safety of instrument operator to the greatest extent. ( MCA test video can be provided)



4. Reliable Material

Centrifuge chamber adopt 2mm thick 316L stainless steel , Housing (3mm Q235 steel ), Containment (22mm Q235 steel ), Diaphragm in door lid (2.5mm Q235 steel )



5. Energy saving

Dynamic compressor control (DCC) technology for optimized cooling performance. When the door lid is opened, the compressor is closed or the sleep time can be set to save energy. Rotor with windshield, little friction and generates little heat.



6. Super-large Capacity

It can process sample with the capacity of 8x2200ml,6x2400ml, separating max 17.6L sample in one cycle, which greatly improves the production efficiency.



7. Built-in safety

Featuring multiple protection , Such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on.



8. Extensible

The system adopts unified and standard Ethernet communication interface and provides key parameter point table , to facilitate system expansion and bring data into system monitoring.



9. Programmable

Save up to 3000 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps ( set speed, time, temperature ), to meet the diversified experimental needs.



10. ACC/DEC Rates

Featuring 10 acceleration and 11 deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifuging result.



11. Main interface function

In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by soft touch the key. For the online monitoring of temperature and speed, the stability of temperature and speed during spinning can be viewed through the curve.



12. Powerful System Setting Function

Running data , error code record and operation record can be stored through the system setting. Chinese / English operation language optional. And user authority management and other characteristic functions can be managed as well.







Product Parameters



Model CL8R
Rotor Type Angle Rotor Swing Rotor
Max Speed 9000r/min 4500r/min
Max RCF 18610xg 6756xg
Max Capacity 6x1000ml 8x2200ml
Time Setting Range 1min~99h59min / 1s~99min59s
Timing Mode Start timing after spinning, start timing after reach setting speed, continuous timing, operation at an appointed time.
Temperature Setting Range -20℃~40℃,Set 1℃ adjustable,
Sample Temperature Accuracy Ensure sample (liquid) temperature accuracy controlled to ±1℃
Temperature Accuracy ±2℃
Speed Accuracy ±10r/min
Power Supply AC 110V / 220V
Power Consumption 7.5kW
Noise ≤70dB(A)
Rotor Identification Yes
Imbalance Protection Yes
Pre-cooling funcion Yes
Computer Control RS485 or RS232
Protection Function Imbalance protection, rotor identification, door lid anti pinch protection, motor overheating protection, over-speed protection, over-temperature protection
Dimension(WxDxH) 88x100x100cm

Package Dimension

(WxDxH)

108x131x134cm
Net Weight 575kg







Rotor Parameters



MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed 3

MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed 4





Company Profile



Cence is a top centrifuge brand created and owned by Hunan Xiangyi Laboratory Instrument Development Co., Ltd. (Company name will be briefed as Hunan Xiangyi in following parts)



Hunan Xiangyi is a high-tech enterpise that manufactures centrifuge machines, including floor standing centrifuge, blood centrifuge, blood bag centrifuge / blood bank centrifuge, medical centrifuge, laboratory centrifuge, prp centrifuge / prf centrifuge, refrigerated centrifuge, crude oil centrifuge, high speed centrifuge, low speed centrifuge, etc.



Founed in 1966, Hunan Xiangyi has specialized in the research and development as well as production and manufacturing of centrifuge machines for more than 50 years.



China's first ultra high speed refrigerating centrifuge (55000r/min) and first high speed refrigerating centrifuge were both manufactured by Hunan Xiangyi.



As a mature and famous centrifuge brand, Cence welome new and old customers from all walks of life for future business and mutual success!



MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed 5







Certificates



As an ISO9001 and ISO13485 approved company, Hunan Xiangyi produces high quality centrifuges. Cence centrifuges have got CE certificate and have been exported to over 80 countries, including the United States, Canada, Britain, Germany, Japan, Turkey, India, Mexico, Vietnam, etc.



MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed 6





Packaging and Delivery



Cence centrifuges are well and safely packed in wooden cases or carton boxes. They are always delivered in good condition to customers all over the world.



MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed 7







Exhibitions



MAC Tested  High Capacity Centrifuge CL8R Quick Spin Centrifuge 9000r/min Speed 8





FAQ



Q: Can I get some samples?

A: Yes, but the sample and shipping fee will be charged, and in good price.



Q: What’s the warranty on your products?

A: All Cence products have one year warranty.

We offer free accessory replacement within warranty. The shipping fee is also on us. Beyond warranty, we only charge accessory cost fee.



Q: What payment method do you accept?

A: We accept western union, T/T, LC and alibaba trade assurance paid.



Q: What’s the lead time and delivery time?

A: For sample order, lead time is normally within 4-7 days after deposit is recevied. For bulk order, it is 15-30 days.

As for delivery time, it depends on the distance and shipping method. You can check with us when place the order.



Q: Can you do OEM or ODM?

A: As an original supplier that owns factory, we can do both OEM and ODM.
