Product Details:
|
| Name: | Fast And Stable Cooling Function Lab Centrifuge (TGL-16M) | Order No: | 0202145000 |
|---|---|---|---|
| Max.Speed: | 16000r/Min | Max Capacity: | 4*100ml |
| Max Rcf: | 21532*g | Time Setting Range: | 1min-99min59sec |
| Noise: | <65dB(a) | Power: | 1200W |
| Dimension(W*D*H): | 410*700*370(mm) | Package Dimendion(W*D*H): | 550*1032*530(mm) |
| High Light: | blood plasma centrifuge,table top centrifuge machine |
||
TGL-16M Tabletop High-speed Refrigerated Centrifuge
Discription:
TGL-16M is a decent-designed centrifuge offering whisper quiet operation, with easy control panel, quick and stable cooling function.The temperature can be kept under-6℃ even at the maximum speed. It is a preferred centrifuge for laboratory analysis.
Features:
1.Microprocessor control, direct driven by DC high torque motor without carbon emission, offering long service life.
2.10 types of rotor are available for free choice, large LCD display and environment-friendly compressor set with high cooling efficiency.
3.Speed,time, acceleration and deceleration profiles can be freely set by the users.
4.9 acceleration and 10 deceleration profiles, triple vibration damping, offering ideal results of separation
5.Accommodating triple protection measures against over-speed, over heat operation or door lid locking malfunction,ensuring safety for the operator and centrifuge.
6.Programmable operation and multiple programs can be saved.
Technical Parameters:
| Model | TGL-16M |
| Order No | 0202145000 |
| Max.Speed | 16000rpm |
| Max.RCF | 21532xg |
| Max.capacity | 4x100ml |
| Speed accuracy | ±30rpm |
| Time setting range | 1min to 99min59sec |
| Temp range | -20℃~40℃ |
| Temp control accuracy | ±1℃ |
| Compressor set | Environment-friendly with |
| Noise | <65dB(A) |
| Power supply | AC220V±22V 50Hz 10A |
| Power consumption | 1200W |
| Dimensions (WxDxH) | 410x700x370mm |
| Packing size (WxDxH) | 550x1032x530mm |
| Net weight | 85kg |

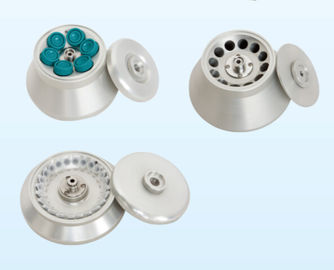

Rotor optional:
No.1 Angle Rotor | Capacity: | Diameter: | No.7 Angle Rotor | Capacity:24x1.5/2.2ml | ||
|  | |||||
| Capacity | 0.2ml | 0.5ml | ||||
| Place | 12/24 | 12/24 | ||||
| Diameter | Φ6.6mm | Φ8mm | ||||
| Depth | 20mm | 27.5mm | ||||
| Order No. | 0304805005 | 0304805004 | ||||
No.2 Angle rotor | Capacity: 12x5mlml | Diameter: Φ14mm | |
| | ||
| Capacity | 0.5ml | 1.5ml | |
| Place | 12 | 12 | |
| Diameter | Φ8mm | Φ11.2mm | |
| Depth | 27.5mm | 37mm | |
| Order No. | 0304806103 | 0304806104 | |
No.4 Angle Rotor | Capacity: | Diameter: | No.3 Angle Rotor | Capacity: | Diameter: Φ16.5mm | |
| | | | |||
| Capacity | 5ml | 1.5ml | 5ml | |||
| Place | 8 | 12 | 12 | |||
| Diameter | Φ14mm | Φ11.2mm | Φ14mm | |||
| Depth | 49mm | 36mm | 49mm | |||
| Order No. | 0304891115 | 0304805307 | 0304891111 | |||
No.4 Angle rotor | Capacity: 6x50ml | No.8 Angle rotor | Capacity:4x50ml | |||||||
| | | | | ||||||
| Capacity | 1.5ml | 5ml | 10ml | 15ml | 20ml | 25ml | 30ml | |||
| Place | 6/4 | 6/4 | 6/4 | 6/4 | 6/4 | 6/4 | 6/4 | |||
| Diameter | Φ11.2mm | Φ14mm | Φ16.5mm | Φ16.5mm | Φ21.5mm | Φ22.5 | Φ26mm | |||
| Depth | 36mm | 49mm | 76mm | 100.5mm | 90mm | 95mm | 86mm | |||
| Order No. | 0304805410 | 0304891086 | 0304891085 | 0304805411 | 0304895606 | 0304805412 | 0304891084 | |||
No.9 Angle Rotor | Capacity: 4x100/ml Diameter: Φ38.5mm | ||||||
| | | | | |||
| Capacity | 5ml | 10ml | 15ml | 15ml conical | 25ml | 50ml | 50ml |
| Place | 12 | 4 | 4 | 4 | 4 | 4 | 4 |
| Diameter | Φ14mm | Φ16.5mm | Φ16.5mm | Φ17mm | Φ22.5mm | Φ29.5mm | Φ29.5mm |
| Depth | 49mm | 76mm | 101mm | 103.5mm | 95mm | 103mm | 103.5mm |
| Order No. | 0304891078 | 0304891080 | 0304891056 | 0304891054 | 0304805608 | 0304891064 | 0304891070 |
