Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40

Certification
China Hunan Xiangyi Laboratory Instrument Development Co., Ltd. certification
China Hunan Xiangyi Laboratory Instrument Development Co., Ltd. certification
I'm Online Chat Now

Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40

Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40
Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40
Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40 Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40 Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40 Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40 Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40 Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40 Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40

Large Image :  Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40

Product Details:
Place of Origin: China
Brand Name: Cence / Xiangyi
Certification: ISO9001, ISO13485, CE
Model Number: DL-6M
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $7500/Set
Packaging Details: Plywood Case or Wooden Case
Delivery Time: 6-10 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 50sets/month

Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40

Description
Name: DL-6M Max Speed: 6000r/min
Max RCF: 6680xg Max Capacity: 6x1000ml
Power Supply: AC220V±22V 50Hz Noise: ≤65dB(A)
Dimension(WxDxH): 73x84x120cm Package Dimension(WxDxH): 92x104x152cm
Power Consumption: 3.0kW Net Weight: 260kg
High Light:

6X1000ml Capacity Refrigerated Centrifuge Machine

,

6000rpm Refrigerated Centrifuge Machine

,

DL-6M Refrigerated Centrifuge

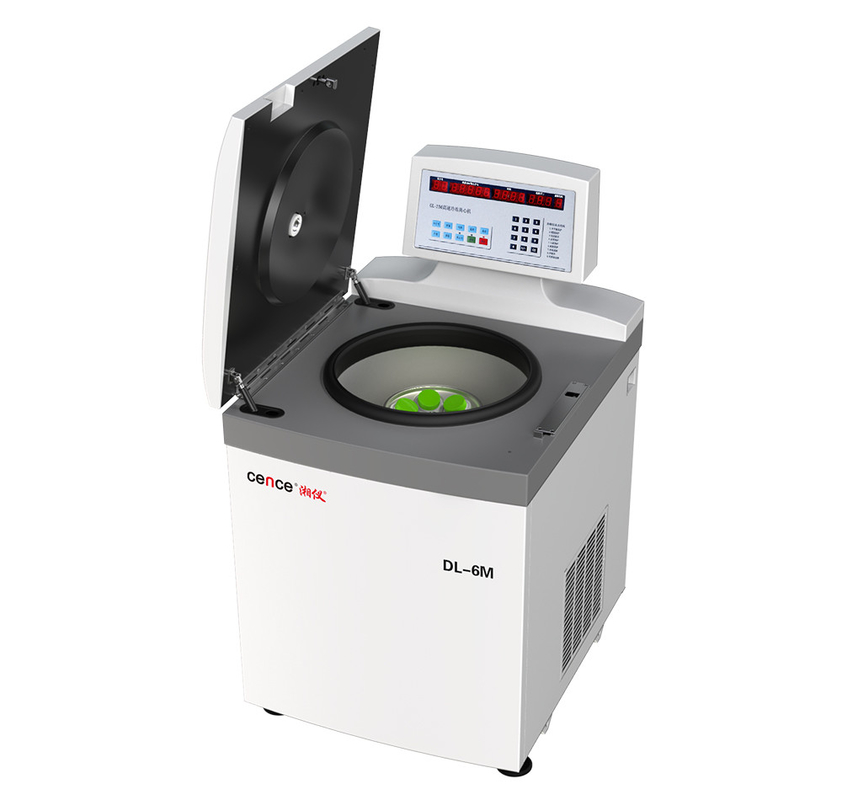

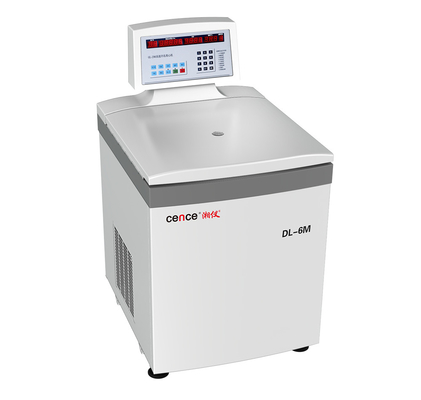

Cence DL-6M Large Capacity Low Speed Refrigerated Centrifuge

DL-6M large capacity low-speed refrigerated centrifuge is a classic model developed by Xiangyi/Cence ,which is very popular in the market.

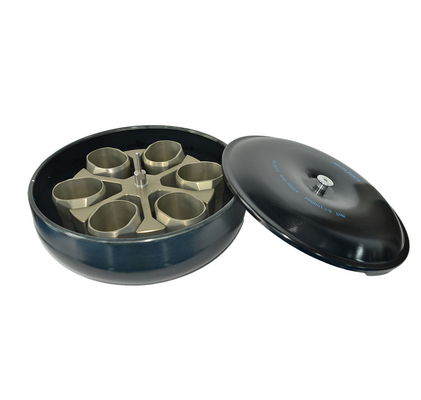

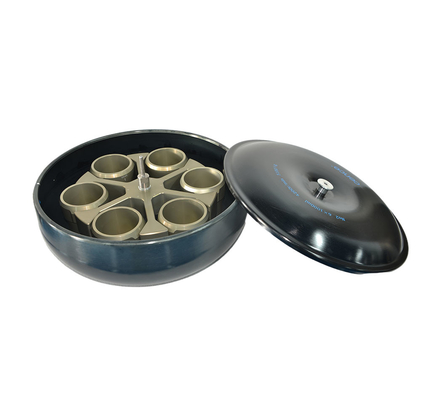

With swing rotor 6x1000ml(round bucket) and 6x1000ml(oval bucket) , it’s an ideal instrument for biopharmaceutical, biological products and blood bank.
Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40 0

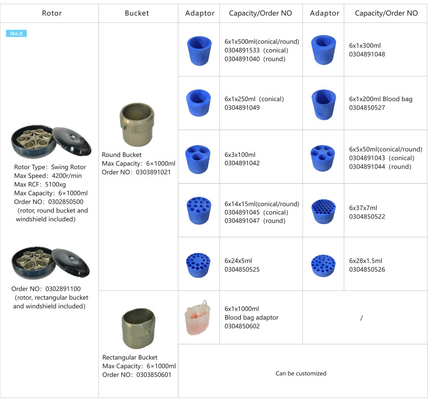

Rotor Parameters


Large Capacity Refrigerated Centrifuge Machine DL-6M -20~40 1




Product Advantages

1. 9 acceleration and 10 deceleration option based on user’s requirement.

2. Touch panel, LED display

3. Environment-friendly refrigerant is adopted .The temperature setting range is - 20 ℃ ~ 40 ℃, and maximum speed temperature can be controlled below - 4 ℃.

4. Multiple protection against imbalance ,over-speed, over-temperature as well as door lid.

5. AC brush-less motor is more reliable.

6. Whole steel housing and three tiers containments for the safety of operator and instrument.

6. Low noise (less than 65dB) and low vibration.

7. The rotor adopt 7075-T6 aviation grade alloy aluminum ,hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled. The flaw detection report , tensile test report , chemical composition test report and processing test report can be provided.




Technical Parameters



Model   DL-6M
Max. Speed Angle rotor 6000rpm
Swing rotor 4200rpm
Max.RCF Angle rotor 6680xg
Swing rotor 5100xg
Max.capacity Angle rotor 6x500ml
Swing rotor 6x1000ml
Speed accuracy   ±10rpm
Time Range   1min~99h59min
Mode of Timing   Timing after reaching the set speed

Acceleration
/deceleration curve

  9 acceleration rates,10 deceleration rates(0 for free stop)
Temp Range   -20℃ to 40℃ (1℃ adjustable)
Pre-cooling   No
Temp Accuracy   ±1℃
Step Centrifugation   Available (100 programs,each program can be divided into 5 steps. More programs can be set through external memory )
Compressor Set   Environment-friendly compressor set with R404a
Drive system   Brushless motor with large torque
Noise   <65dB(A)
Power supply   AC220V +/-22V,50Hz 30A
Power consumption   3.0kW
Dimensions(WxDxH)   73x84x120cm
Packing size(WxDxH)   92x104x152cm
Net Weight   260kg





Company Profile

Cence is a top centrifuge brand created and owned by Hunan Xiangyi Laboratory Instrument Development Co., Ltd. (Company name will be briefed as Hunan Xiangyi in following parts)

Hunan Xiangyi is a high-tech enterpise that manufactures centrifuge machines, including floor standing centrifuge, blood centrifuge, blood bag centrifuge / blood bank centrifuge, medical centrifuge, laboratory centrifuge, prp centrifuge / prf centrifuge, refrigerated centrifuge, crude oil centrifuge, high speed centrifuge, low speed centrifuge, etc.

Founed in 1966, Hunan Xiangyi has specialized in the research and development as well as production and manufacturing of centrifuge machines for more than 50 years.

China's first ultra high speed refrigerating centrifuge (55000r/min) and first high speed refrigerating centrifuge were both manufactured by Hunan Xiangyi.


As a mature and famous centrifuge brand, Cence welome new and old customers from all walks of life for future business and mutual success!
