Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry

Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry
Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry

Large Image :  Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry

Product Details:
Place of Origin: China
Brand Name: Cence / Xiangyi
Certification: ISO9001, ISO13485, CE
Model Number: L720R-3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $16770 /set
Packaging Details: Plywood Case
Delivery Time: 6-10 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 50sets/month

Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry

Description
Model: L720R-3 Max Speed: 7200r/min
Max Capacity: 6x2400ml Max RCF: 12166xg
Time Setting Range: 1min~99h59min/1s~99min59s Noise: ≤65dB(A)
Power Consumption: 7.0kW Dimension(WxDxH): 88x102x97cm
Package Dimension(WxDxH): 108x131x134cm Net Weight: 545kg
High Light:

high speed refrigerated centrifuge

,

blood bank refrigerated centrifuge




Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry


L720R-3 is a large capacity low-speed refrigerated centrifuge with advance technology and reliable performance.

It’s popular by users for many years. 7-inch HD touch screen and user-friendly UI.

Max capacity 6x2400ml, it’s the first choice in the fields of blood banks, pharmacy and biological products.

Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry 0
Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry 1




Product Advantages

1. Large capacity
Up to 6x2400ml capacity, it can separating 14.4L sample in one cycle, which greatly improves the production efficiency.
2. Safe Structure
The overall unit has passed MCA ( (Maximum Credible Accident test ),
After MCA is generated, the centrifuge door lid shall not be opened, and no solid greater than 0.5mm shall blown out of the centrifuge chamber, the position movement shall not exceed 30cm, ensure the personal safety of instrument operator to the greatest extent. ( MCA test video can be provided)
3. Reliable Material
Centrifuge chamber adopt 2mm thick 316L stainless steel , Housing (3mm Q235 steel ), Containment (22mm Q235 steel ), Diaphragm in door lid (2.5mm Q235 steel )
4. Energy saving
Dynamic compressor control (DCC) technology for optimized cooling performance. When the door lid is opened, the compressor is closed or the sleep time can be set to save energy. Rotor with windshield, little friction and generates little heat.
5. Built-in safety
Featuring multiple protection , Such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on.
6. Extensible
The system adopts unified and standard Ethernet communication interface and provides key parameter point table , to facilitate system expansion and bring data into system monitoring.
7. Programmable
Save up to 2000 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps ( set speed, time, temperature ), to meet the diversified experimental needs.
8. ACC/DEC Rates
Featuring 10 acceleration and 11 deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifugal effect.
9. Main interface function
In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by just touch the key. For the online monitoring of temperature and speed, the stability of temperature and speed during spinning can be viewed through the curve.
10. Powerful System Setting Function
Running data , error code record and operation record can be stored through the system setting. Chinese / English operation language optional. And user authority management and other characteristic functions can be managed as well.

Product Parameters


ModelL720R-3
Rotor TypeAngle RotorSwing Rotor
Max Speed7200r/min4000r/min
Max RCF12166xg5600xg
Max Capacity6x1000ml6x2400ml
Time Setting Range1min~99h59min / 1s~99min59s
Timing ModeStart timing after spinning, start timing after reach setting speed, continuous timing, operation at an appointed time.
Temperature Setting Range-20℃~40℃, 1℃ adjustable one time
Sample Temperature AccuracyEnsure sample (liquid) temperature accuracy controlled to ±1℃
Temperature Accuracy±2℃
Speed Accuracy±10r/min
Power SupplyAC 110V / 220V
Power Consumption7.0kW
Noise≤65dB(A)
Rotor IdentificationYes
Imbalance ProtectionYes
Pre-cooling funcionYes
Computer ControlRS485 or RS232
Protection FunctionImbalance protection, rotor identification, door lid anti pinch protection, motor overheating protection, over-speed protection, over-temperature protection
Dimension(WxDxH)88x102x97cm
Package Dimension
(WxDxH)
108x131x134cm
Net Weight545kg

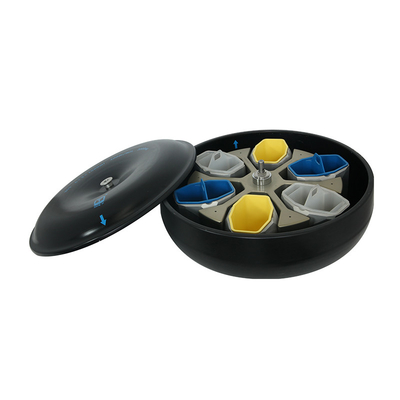

Rotor Parameters
Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry 2

Company Profile
Cence is a top centrifuge brand created and owned by Hunan Xiangyi Laboratory Instrument Development Co., Ltd. (Company name will be briefed as Hunan Xiangyi in following parts)
Hunan Xiangyi is a high-tech enterpise that manufactures centrifuge machines, including floor standing centrifuge, blood centrifuge, blood bag centrifuge / blood bank centrifuge, medical centrifuge, laboratory centrifuge, prp centrifuge / prf centrifuge, refrigerated centrifuge, crude oil centrifuge, high speed centrifuge, low speed centrifuge, etc.
Founed in 1966, Hunan Xiangyi has specialized in the research and development as well as production and manufacturing of centrifuge machines for more than 50 years.
China's first ultra high speed refrigerating centrifuge (55000r/min) and first high speed refrigerating centrifuge were both manufactured by Hunan Xiangyi.
As a mature and famous centrifuge brand, Cence welome new and old customers from all walks of life for future business and mutual success!


Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry 3



Certificates

As an ISO9001 and ISO13485 approved company, Hunan Xiangyi produces high quality centrifuges. Cence centrifuges have got CE certificate and have been exported to over 80 countries, including the United States, Canada, Britain, Germany, Japan, Turkey, India, Mexico, Vietnam, etc.

Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry 4


Packaging and Delivery

Cence centrifuges are well and safely packed in wooden cases or carton boxes. They are always delivered in good condition to customers all over the world.

Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry 5



Exhibitions

Refrigerated Centrifuge Machine L720R-3 Super Capacity Easy Operation for Pharmacy and Chemical Industry 6


FAQ

Q: Can I get some samples?
A: Yes, but the sample and shipping fee will be charged, and in good price.

Q: What’s the warranty on your products?
A: All Cence products have one year warranty.
We offer free accessory replacement within warranty. The shipping fee is also on us. Beyond warranty, we only charge accessory cost fee.

Q: What payment method do you accept?
A: We accept western union, T/T, LC and alibaba trade assurance paid.

Q: What’s the lead time and delivery time?
A: For sample order, lead time is normally within 4-7 days after deposit is recevied. For bulk order, it is 15-30 days.
As for delivery time, it depends on the distance and shipping method. You can check with us when place the order.

Q: Can you do OEM or ODM?
A: As an original supplier that owns factory, we can do both OEM and ODM.
