Product Details:
|
| Model: | CL8R | Max Speed: | 9000r/min |
|---|---|---|---|
| Capacity: | 8x2200ml | Display: | Large Touch Screen |
| Usage: | Blood Bank, Biopharmacy | Max Rcf: | 14472xg |
| Noise: | <65dB(A) | Time Setting Range: | 1min~99h59min |
| Power: | 7.5kW | Net Weight: | 575kg |
| High Light: | high speed refrigerated centrifuge,blood bank refrigerated centrifuge |
||

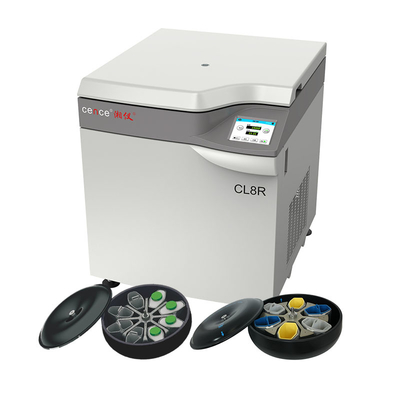

CL8R Super-Large Capacity Refrigerated Centrifuge
Description
CL8R super-large capacity refrigerated centrifuge, a new and smart centrifuge, is jointly developed with the well-known manufacturers and key universities, representing the world advanced level.
It has passed MCA test and rotor service life test by authority agency in the United States, which reaches the US standard level. The max.capacity reaches 8x2000ml. It is the preferred lab product in the field of blood banks, pharmacy and biological products.
Technical Parameters
| Model | CL8R | |
| Order No. | 0204258000 | |
| Max.Speed | Angle | 9000rpm |
| Swing | 4500rpm | |
|
Max.RCF
|
Angle | 18316xg |
| Swing | 6756xg | |
| Max.Capacity | Angle | 6x1000ml |
| Swing | 8x2000ml(12x500ml or 16x500 blood bags) | |
| Speed accuracy | +/-10rpm | |
| Speed range | 100rpm~max.speed, step 100(the multiple of 10 can be customized as per requirements ) | |
| Timer | 1min~99h59min | |
| Timing mode | Start timing after reaching the set speed, instantaneous & continuous timing, start operation at an appointed time etc | |
|
Acceleration/ deceleration curve |
9-acceleration,10-deceleration (Less than 30- acceleration/deceleration profiles can be customized as per requirements ) | |
| Temperature range | -20℃~40℃(1℃ adjustable ) | |
| Precooling | Available(up to -20℃) | |
| Temperature accuracy | +/-1℃ | |
| Gradient centrifuging |
Available (100 programs, each program can be divided into 5 steps, more programs can be stored with an external memory device.) |
|
| Compressor set | World advanced compressor set with high performance and environment-friendly refrigerant, | |
| Driving system | High torque motor without carbon brushes | |
| Noise | <65dB(A) | |
| Power supply | AC220+/-22V,50Hz,50A | |
| Total power | 7.5Kw | |
| Dimensions(WxDxH) | 88x100x100cm | |
| Packing size(WxDxH) | 108x131x134cm | |
| Weight | 575Kg | |
| Key parts material |
Centrifuge chamber 316, PPCO bottle, aluminum alloy rotor body
|
|
| Others | Multilingual Settings, built-in operation instructions, user log, maintenance record, user authority control, automatic door control, rotor self-identification, over temperature protection. | |
Company Profile
Cence is a top centrifuge brand created and owned by Hunan Xiangyi Laboratory Instrument Development Co., Ltd. (Company name will be briefed as Hunan Xiangyi in following parts)
Hunan Xiangyi is a high-tech enterpise that manufactures centrifuge machines, including floor standing centrifuge, blood centrifuge, blood bag centrifuge / blood bank centrifuge, medical centrifuge, laboratory centrifuge, prp centrifuge / prf centrifuge, refrigerated centrifuge, crude oil centrifuge, high speed centrifuge, low speed centrifuge, etc.
Founed in 1966, Hunan Xiangyi has specialized in the research and development as well as production and manufacturing of centrifuge machines for more than 50 years.
The first ultra high speed refrigerated centrifuge (55000r/min) and first high speed refrigerated centrifuge (20000r/min) of China were both made by Hunan Xiangyi.
As a mature and famous centrifuge brand, Cence welome new and old customers from all walks of life for future business and mutual success!
