|Max Capacity:||6x1000ml||Max RCF:||12166xg|
|Time Setting Range:||1min~99h59min/1s~99min59s||Noise:||≤65dB(A)|
|Package Dimension(WxDxH):||108x131x134cm||Net Weight:||545kg|
floor model centrifuge,
blood centrifuge machine

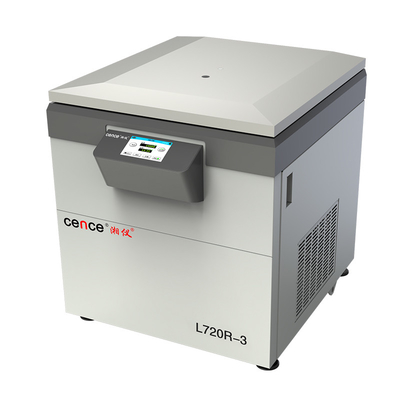

Microprocessor Control Low Speed Centrifuge L720R-3 With LCD Display Easy Operation
1. Large capacity
Up to 6x2400ml capacity, it can separating 14.4L sample in one cycle, which greatly improves the production efficiency.
2. Safe Structure
The overall unit has passed MCA ( (Maximum Credible Accident test ),
After MCA is generated, the centrifuge door lid shall not be opened, and no solid greater than 0.5mm shall blown out of the centrifuge chamber, the position movement shall not exceed 30cm, ensure the personal safety of instrument operator to the greatest extent. ( MCA test video can be provided)
3. Reliable Material
Centrifuge chamber adopt 2mm thick 316L stainless steel , Housing (3mm Q235 steel ), Containment (22mm Q235 steel ), Diaphragm in door lid (2.5mm Q235 steel )
4. Energy saving
Dynamic compressor control (DCC) technology for optimized cooling performance. When the door lid is opened, the compressor is closed or the sleep time can be set to save energy. Rotor with windshield, little friction and generates little heat.
5. Built-in safety
Featuring multiple protection , Such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on.
The system adopts unified and standard Ethernet communication interface and provides key parameter point table , to facilitate system expansion and bring data into system monitoring.
Save up to 2000 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps ( set speed, time, temperature ), to meet the diversified experimental needs.
8. ACC/DEC Rates
Featuring 10 acceleration and 11 deceleration rates, to prevent the sample from second emulsion or turbid, and achieve best centrifugal effect.
9. Main interface function
In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by just touch the key. For the online monitoring of temperature and speed, the stability of temperature and speed during spinning can be viewed through the curve.
10. Powerful System Setting Function
Running data , error code record and operation record can be stored through the system setting. Chinese / English operation language optional. And user authority management and other characteristic functions can be managed as well.
|Rotor Type||Angle Rotor||Swing Rotor|
|Time Setting Range||1min~99h59min / 1s~99min59s|
|Timing Mode||Start timing after spinning, start timing after reach setting speed, continuous timing, operation at an appointed time.|
|Temperature Setting Range||-20℃~40℃, 1℃ adjustable one time|
|Sample Temperature Accuracy||Ensure sample (liquid) temperature accuracy controlled to ±1℃|
|Power Supply||AC 110V / 220V|
|Computer Control||RS485 or RS232|
|Protection Function||Imbalance protection, rotor identification, door lid anti pinch protection, motor overheating protection, over-speed protection, over-temperature protection|
Cence is a top centrifuge brand created and owned by Hunan Xiangyi Laboratory Instrument Development Co., Ltd. (Company name will be briefed as Hunan Xiangyi in following parts)
Hunan Xiangyi is a high-tech enterpise that manufactures centrifuge machines, including floor standing centrifuge, blood centrifuge, blood bag centrifuge / blood bank centrifuge, medical centrifuge, laboratory centrifuge, prp centrifuge / prf centrifuge, refrigerated centrifuge, crude oil centrifuge, high speed centrifuge, low speed centrifuge, etc.
Founed in 1966, Hunan Xiangyi has specialized in the research and development as well as production and manufacturing of centrifuge machines for more than 50 years.
China's first ultra high speed refrigerating centrifuge (55000r/min) and first high speed refrigerating centrifuge were both manufactured by Hunan Xiangyi.
As a mature and famous centrifuge brand, Cence welome new and old customers from all walks of life for future business and mutual success!
