Product Details:
|
| Max Speed: | 10000r/min | Max RCF: | 17700xg |
|---|---|---|---|
| Max Capacity: | 6*1000ml | Temperature Accuracy: | ±2℃ |
| Power Supply: | AC 110V / 220V | Power Consumption: | 6.5kW |
| Noise: | ≤65dB(A) | Dimension(L*W*H): | 70*90*94cm |
| Package Dimension(L*W*H): | 92*104*120cm | ||
| High Light: | Laboratory High Speed Refrigerated Centrifuge,VORTEX 10K Laboratory Centrifuge,10000r/min Speed Refrigerated Centrifuge |
||
Product Advantages
1. Automatic door locking system
Automatic door opening & closing by just touch the key on the screen.
Door lid come with intelligent anti pinch device.
2. Large Capacity, High Speed
Max sample processing capacity up to 6x1000ml, Max speed up to 10000r/min. Max RCF up to 17700xg, which greatly improves the production efficiency and separation effect.
3. Built-in safety
Featuring multiple protection , Such as automatic rotor identification, imbalance protection, over-speed protection, over-temperature protection, motor overheating protection, door lid protection and so on.
4. Reliable Material
The alloy aluminum rotor adopt 7075-T6 aviation grade alloy aluminum ,hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled. The flaw detection report , tensile test report , chemical composition test report and processing test report can be provided. Centrifuge chamber adopt 2mm thick 316L stainless steel , Housing (3mm Q235 steel ), Containment (15mm Q235 steel), Diaphragm in door lid (3mm Q235 steel)
5. Extensible
The system adopts unified and standard Ethernet communication interface and provides key parameter point table , to facilitate system expansion and bring data into system monitoring.
6. Programmable
Save up to 100 user-defined program. Users can name each program to distinguish it. Each program can be divided into 5 steps ( set speed, time, temperature ), to meet the diversified experimental needs.
7. ACC/DEC Rates
11 acceleration and 12 deceleration rate ( NO.10 rate can be self-defined) , to prevent second emulsion or turbid, to achieve best centrifugation result.
8. Main interface function
In manual mode, the centrifuge parameters can be set quickly, and the G-force and speed can be switched by just touch the key.
9. Powerful System Setting Function
Powerful control system allows easy data capture, storage, and processing.
10. Centrifuge Management System( Optional)
It can monitor 1 to 100 centrifuges through intelligent terminal (computer);
Provide real-time connection with centrifuge with mobile APP;
Built in help information in each interface;
Make the centrifuge intelligent.
Product Parameters
| Max Speed | 10000r/min |
| Max RCF | 17700xg |
| Max Capacity | 6*1000ml |
| Time Setting Range | 1min~99h59min / 1s~99min59s |
| Temperature Setting Range | -20℃~40℃, 1℃ going up one time |
| Temperature Accuracy | ±2℃ |
| Speed Accuracy | ±10r/min |
| Power Supply | AC 110V / 220V |
| Power Consumption | 6.5kW |
| Noise | ≤65dB(A) |
| Rotor Identification | Yes |
| Imbalance Protection | Yes |
| Pre-cooling Function | Yes |
| Computer Control | RS485 or RS232 |
| Dimension(L*W*H) | 70*90*94cm |
| Net Weight | 355kg |

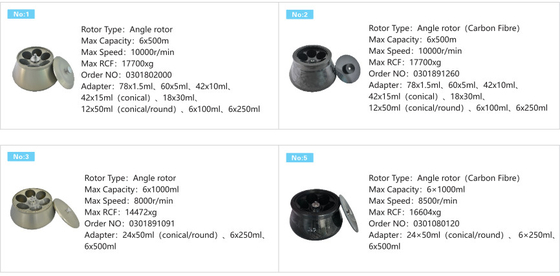

Rotor Parameters
