Product Details:
|
| Name: | Large Capacity Medical Use Full-steel Fuselage Structure Refrigerated Centrifuge (DL-6M) | Max Speed: | 6000rpm |
|---|---|---|---|
| Max RCF: | 6680xg | Max Capacity: | 6*1000ml |
| Power Supply: | AC220V 50Hz 3A | Noise Level: | <65dB(A) |
| Dimension: | 673*84*120cm | Package Dimension: | 920*1040*1520mm |
| Power: | 3.0kw | Net Weight: | 260kg |
| High Light: | blood bank refrigerated centrifuge,high capacity centrifuge |
||

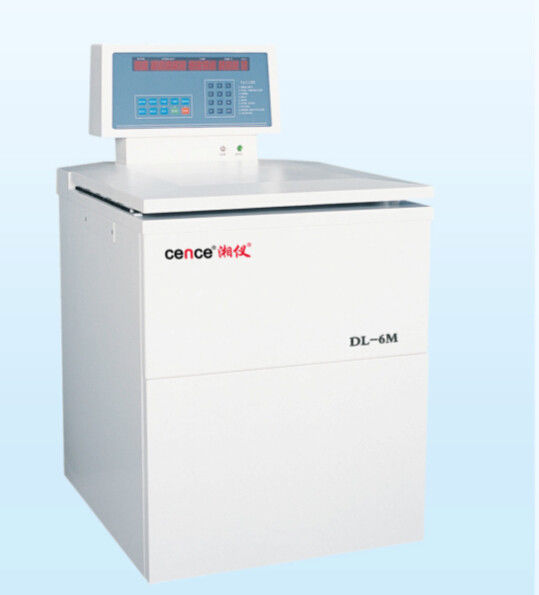

DL-6M refrigerated swing and fixed rotor centrifuge
Features:
The centrifuges are hot sales in the market and well-received products by the customers, equipped with 6x1000ml round cup and 6x1000ml quadrilateral cup, ideal equipment in the field of bio-pharmacy, bio-products and blood banks.
Technical parameters:
| Model | DL-6M / DL-6MC | |
| Order No. | 0204126000 / 0204129000 | |
| Max. Speed | Angle rotor | 6000rpm |
| Swing rotor | 4200rpm | |
| Max.RCF | Angle rotor | 6680xg |
| Swing rotor | 5100xg | |
| Max.capacity | Angle rotor | 6x500ml |
| Swing rotor | 6x1000ml | |
| Speed accuracy | ±10rpm | |
| Speed range | 100rpm~Max. speed, progressive step100( it can be customized, multiples of 10) | |
| Time Range | 1min to 23h59min | |
| Mode of timing | timing after reaching the set speed | |
|
Acceleration /deceleration curve |
9 acceleration rates,10 deceleration rates(0 for free stop) | |
| Temp Range | -20℃ to 40℃ (1℃ adjustable) | |
| Pre-cooling | Unavailable | |
| Temp accuracy | ±1℃ | |
| Step centrifugation | Available (100 programs,each program can be divided into 5 steps. More programs can be set through external memory ) | |
| Compressor set | Environment-friendly compressor set with R404a | |
| Drive system | Brushless motor with large torque | |
| Noise | <65dB(A) | |
| Power supply | AC220V +/-22V,50Hz 30A | |
| Power consumption | 3.0kW | |
| Dimensions(WxDxH) | 730x840x1200(mm) | |
| Packing size(WxDxH) | 920x1040x1520(mm) | |
| Weight | 260Kg | |
| Key parts material | 316 centrifuge chamber, PPCO test bottle, Aluminum alloy rotor. |

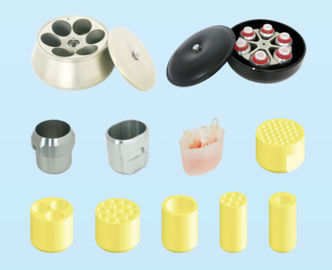

Rotor Optional:
| Rotors | Adapter | Capacity | places |
Diameter (mm) |
Depth (mm) |
Order No |
|
Swing Rotor
Order No 0301801900 Speed: 6000rpm RCF: 6680xg Capacity: 6x500ml Diameter: Φ70mm Depth: 141.5mm |
250ml |
6 |
Φ62 |
113 |
0304891066 |
|
|
100ml |
6 |
Φ38.5 |
109 |
0304891067 |
||
|
50ml (Conical) |
12 |
Φ29.5 |
102 |
0304891088 |
||
| 50ml |
6 |
Φ29.5 |
103 |
0304891069 |
||
|
50ml (Conical) |
6 |
Φ29.5 |
102 |
0304891071 |
||
|
30ml |
18 |
Φ29.5 |
98 |
0304891089 |
||
|
15ml (Conical) |
42 |
Φ17 |
104 |
0304891072 |
||
|
10ml |
42 |
Φ17 |
78 |
0304891073 |
||
|
5ml |
60 |
Φ14 |
49 |
0304891076 |
||
|
1.5ml |
78 |
Φ11.2 |
38 |
03048000709 |
