Product Details:
|
Name: | Multi-function Large Capacity Low Speed Refrigerated Centrifuge (L535R-1) | Max Speed: | 5350r/Min |
---|---|---|---|
Max RCF: | 5030*g | Max Capacity: | 4*750ml |
Noise Level: | <65dB(A) | Dimension: | 560*660*850(mm) |
Wattage: | 3.0kw | Time Setting Range: | 1min-99min |
Package: | 756*856*1320(mm) | Net Weight: | 120kg |
Compressor: | R404a | ||
High Light: | laboratory centrifuge machine,centrifuge laboratory apparatus,Pharmaceutical Laboratory Refrigerated Centrifuge |

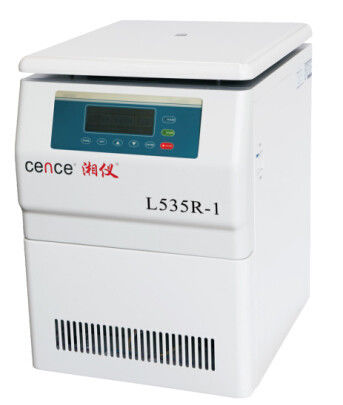

Multi-function Large Capacity Low Speed Refrigerated Centrifuge L535R-1
Discription:
L535R-1 is a multipurpose large capacity centrifuge(L535-1 ventilated centrifuge, L535 R refrigerated centrifuge) supports diversified rotors, buckets and adapters, equipped with world advanced compressor set. Temperature can be kept under -4℃ even at max. speed. L535-1 ventilated centrifuge accommodates unique wind flow direction device, maintaining the chamber temperature ≤4℃ for 15 minutes continuous running, ensuring the sample at the ideal temperature.
Features:
1.World advanced environment-friendly compressor set with ideal cooling effect.
2.Microprocessor control,AC inverter motor with high torque,maintenance free.
3.RFC value can be calculated and set automatically.
4.Offers multiple racks, buckets, brackets and adapters for multipurpose applications.
5.Under programmable operation and regular programs can be saved.
6.Featuring 9 acceleration profiles and 10 deceleration profiles to prevent second emulsion or turbid , 2-stage vibration damping device.
7.Provides multiple protection measures against over speed, over temperature and malfunction of door lid to ensure the safety for the operator and the centrifuge.
Technical Dada:
Model | L535R-1 | L535-1 | L535R |
Order No. | 0204151000 | 0205219000 | 02041430000 |
Max. Speed | 5350rpm | 5350rpm | 5350rpm |
Max. RCF | 5030xg | 5030xg | 5030xg |
Max. Capacity | 4x750ml | 4x750ml | 4x750ml |
Speed Accuracy | ±10rpm | ±10rpm | ±10rpm |
Time Range | 1min-99min | 1min-99min | 1min-99min |
Temp.Range | -20℃--40℃ | / | -20℃--40℃ |
Temp.Control Accuracy | ±1℃ | / | ±1℃ |
Compressor set |
Environs-friendly |
/ |
Environs-friendly |
Noise | <65dB(A) | <65dB(A) | <65dB(A) |
Power Supply | Ac220±22V50Hz 16A |
Ac220±22V |
Ac220±22V |
Power Consumption | 1.7kw | 1.1kw | 1.6kw |
Dimensions |
560x660x850(mm) | 565x660x850(mm) | 710x630x440(mm) |
Package Size |
756x856x1320(mm) | 756x856x1320(mm) | 860x810x620(mm) |
Net Weight | 120kg | 98kg | 75kg |
