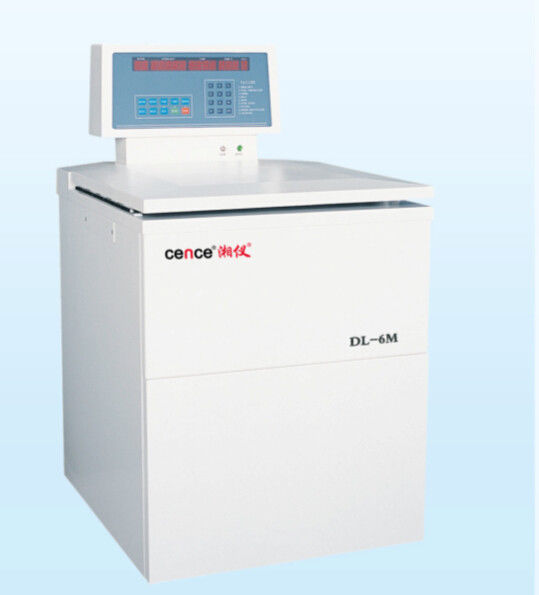

New Generation Intelligence Large Capacity Refrigerated Classic Centrifuge (DL-6MC)

Certification
China Hunan Xiangyi Laboratory Instrument Development Co., Ltd. certification
China Hunan Xiangyi Laboratory Instrument Development Co., Ltd. certification
I'm Online Chat Now

New Generation Intelligence Large Capacity Refrigerated Classic Centrifuge (DL-6MC)

New Generation Intelligence Large Capacity Refrigerated Classic Centrifuge (DL-6MC)
New Generation Intelligence Large Capacity Refrigerated Classic Centrifuge (DL-6MC) New Generation Intelligence Large Capacity Refrigerated Classic Centrifuge (DL-6MC) New Generation Intelligence Large Capacity Refrigerated Classic Centrifuge (DL-6MC) New Generation Intelligence Large Capacity Refrigerated Classic Centrifuge (DL-6MC)

Large Image :  New Generation Intelligence Large Capacity Refrigerated Classic Centrifuge (DL-6MC)

Product Details:
Place of Origin: Hunan, China (Mainland)
Brand Name: Xiangyi(CENCE)
Certification: ISO9001: 2008, ISO13485, CE
Model Number: DL-6MC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: US $8,700-9,600 / Sets | 1 Set/Sets (Min. Order)
Packaging Details: Carton
Delivery Time: 7-10work days
Payment Terms: T/T, L/C

New Generation Intelligence Large Capacity Refrigerated Classic Centrifuge (DL-6MC)

Description
Name: New Generation Intelligence Large Capacity Refrigerated Classic Centrifuge (DL-6MC) Max Speed: 6000rpm
Max RCF: 6680xg Max Capacity: 6*1000ml
Power Supply: AC220V 50Hz 3A Noise Level: <65dB(A)
Dimension: 673*84*120cm Wattage: 3.0kw
Time Setting Range: 1 Min To 23h59min
High Light:

blood tube centrifuge

,

high capacity centrifuge

New Generation Intelligence Large Capacity Refrigerated Classic Centrifuge (DL-6MC)




Discription:

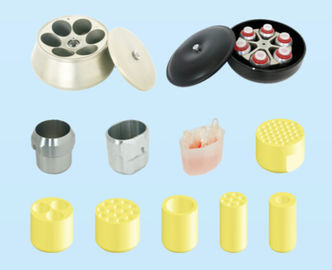

The centrifuges are hot sales in the market and well-received products by the customers, equipped with 6x1000ml round cup and 6x1000ml quadrilateral cup, ideal equipment in the field of bio-pharmacy, bio-products and blood banks.





Features:

1.The speed accuracy is ±10rpm.

2.Acceleration and deceleration time can be customized, including 9 rates of acceleration and 10 rates of deceleration.

3.The temperature range is -20℃~40℃,which can be kept under -4℃ even at the maximum running speed due to the environment-friendly refrigerant.

4.Automatic monitor imbalance, over-speed, over-temperature and door locking etc.

5.Equipped with brushless and inverter motor.

6.All steel structure with triple protections for safe operation.

7.Noise is less than 65dB with little vibration.

8.DL-6MC is developed on the basis of DL-6M.The former can be directly operated through personal computer.The curves of acceleration, deceleration, speed as well as temperature can be displayed directly on the screen. Each parameter of centrifuge operation within recent 10 years can be recorded and saved for your convenient check. Furthermore it can be connected with internet for management through local area network.





Technical Parameters:

Model   DL-6M / DL-6MC
Order No.   0204126000 / 0204129000
Max. Speed Angle rotor 6000rpm
Swing rotor 4200rpm
Max.RCF Angle rotor 6680xg
Swing rotor 5100xg
Max.capacity Angle rotor 6x500ml
Swing rotor 6x1000ml
Speed accuracy   ±10rpm
Speed range   100rpm~Max. speed, progressive step100( it can be customized, multiples of 10)
Time Range   1min to 23h59min
Mode of timing   timing after reaching the set speed

Acceleration

/deceleration curve

  9 acceleration rates,10 deceleration rates(0 for free stop)
Temp Range   -20℃ to 40℃ (1℃ adjustable)
Pre-cooling   Unavailable
Temp accuracy   ±1℃
Step centrifugation   Available (100 programs,each program can be divided into 5 steps. More programs can be set through external memory )
Compressor set   Environment-friendly compressor set with R404a
Drive system   Brushless motor with large torque
Noise   <65dB(A)
Power supply   AC220V +/-22V,50Hz 30A
Power consumption   3.0kW
Dimensions(WxDxH)   730x840x1200(mm)
Packing size(WxDxH)   920x1040x1520(mm)
Weight   260Kg
Key parts material   316 centrifuge chamber, PPCO test bottle, Aluminum alloy rotor.
