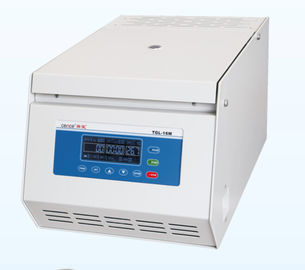

Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M)

Certification
China Hunan Xiangyi Laboratory Instrument Development Co., Ltd. certification
China Hunan Xiangyi Laboratory Instrument Development Co., Ltd. certification
I'm Online Chat Now

Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M)

Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M)
Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M)

Large Image :  Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M)

Product Details:
Place of Origin: China
Brand Name: CENCE
Certification: ISO9001: 2008, ISO13485, CE
Model Number: TGL-16M
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Carton
Delivery Time: 8-10work days
Payment Terms: T/T, L/C

Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M)

Description
Name: Fast And Stable Cooling Function Lab Centrifuge (TGL-16M) Order No: 0202145000
Max.Speed: 16000r/Min Max Capacity: 4*100ml
Max Rcf: 21532*g Time Setting Range: 1min-99min59sec
Noise: <65dB(a) Power: 1200W
Dimension(W*D*H): 410*700*370(mm) Package Dimendion(W*D*H): 550*1032*530(mm)
High Light:

blood tube centrifuge

,

blood bank refrigerated centrifuge

TGL-16M Tabletop High-speed Refrigerated Centrifuge


Discription:
TGL-16M is a decent-designed centrifuge offering whisper quiet operation, with easy control panel, quick and stable cooling function.The temperature can be kept under-6℃ even at the maximum speed. It is a preferred centrifuge for laboratory analysis.


Features:
1.Microprocessor control, direct driven by DC high torque motor without carbon emission, offering long service life.
2.10 types of rotor are available for free choice, large LCD display and environment-friendly compressor set with high cooling efficiency.
3.Speed,time, acceleration and deceleration profiles can be freely set by the users.
4.9 acceleration and 10 deceleration profiles, triple vibration damping, offering ideal results of separation
5.Accommodating triple protection measures against over-speed, over heat operation or door lid locking malfunction,ensuring safety for the operator and centrifuge.
6.Programmable operation and multiple programs can be saved.


Technical Parameters:

ModelTGL-16M
Order No0202145000
Max.Speed16000rpm
Max.RCF21532xg
Max.capacity4x100ml
Speed accuracy±30rpm
Time setting range1min to 99min59sec
Temp setting range-20℃~40℃
Temp control accuracy±1℃
Compressor set

Environment-friendly with
(R134a)refrigerant

Noise<65dB(A)
Power supplyAC220V±22V 50Hz 10A
Power consumption1200W
Dimensions (WxDxH)410x700x370mm
Net weight85kg





Rotor optional:

No.1 Angle Rotor
Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 0

Capacity:
12x1.5/2.2ml
Speed:16000rpm
RCF:17800xg

Diameter:
Φ11.2mm
Depth:38mm
Order No.
0301805020

No.7 Angle Rotor
Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 1

Capacity:24x1.5/2.2ml
Speed: 15000rpm
RCF: 21532xg
Diameter: Φ11.2mm
Depth:38mm
Order No.0301891066


Adapter

Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 2
Capacity0.2ml0.5ml
Place12/2412/24
DiameterΦ6.6mmΦ8mm
Depth20mm27.5mm
Order No.03048050050304805004



No.2 Angle rotor
Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 3

Capacity: 12x5mlml
Speed:13000rpm
RCF:11903xg

Diameter: Φ14mm
Depth: 849mm
Order No. 0301891101


Adapter

Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 4
Capacity0.5ml1.5ml
Place1212
DiameterΦ8mmΦ11.2mm
Depth27.5mm37mm
Order No.03048061030304806104



No.4 Angle Rotor


Capacity:
6x50ml conical
Speed:11000rpm
RCF:12840xg

Diameter:
Φ29.5mm
Depth:103mm
Order No.
0301805930

No.3 Angle Rotor


Capacity:
12x10ml
Speed:
13000rpm
RCF:16060xg

Diameter: Φ16.5mm
Depth:76mm
Order No.
0301805310


Adapter

Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 5Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 6Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 7
Capacity5ml1.5ml5ml
Place81212
DiameterΦ14mmΦ11.2mmΦ14mm
Depth49mm36mm49mm
Order No.030489111503048053070304891111



No.4 Angle rotor
Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 8

Capacity: 6x50ml
Speed: 11000rpm
RCF: 12840xg
Diameter: Φ29.5mm
Depth: 96.5mm
Order No. 0301805420

No.8 Angle rotor
Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 9

Capacity:4x50ml
Speed: 12000rpm
RCF: 13980xg
Diameter: Φ29.5mm
Depth: 91.5mm
Order No. 0301806300


Adapter

 Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 10Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 10Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 10Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 10
Capacity1.5ml5ml10ml15ml20ml25ml30ml
Place6/46/46/46/46/46/46/4
DiameterΦ11.2mmΦ14mmΦ16.5mmΦ16.5mmΦ21.5mmΦ22.5Φ26mm
Depth36mm49mm76mm100.5mm90mm95mm86mm
Order No.0304805410030489108603048910850304805411030489560603048054120304891084



No.9 Angle Rotor
Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 14

Capacity: 4x100/ml Diameter: Φ38.5mm
Speed: 10000rpm Depth: 109mm
RCF: 9690xg Order No. 0301805710


Adapter

Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 15Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 16   Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 17Mute Fast and Stable Cooling Function Lab Centrifuge (TGL-16M) 18
Capacity5ml10ml15ml15ml conical25ml50ml

50ml
conical

Place12444444
DiameterΦ14mmΦ16.5mmΦ16.5mmΦ17mmΦ22.5mmΦ29.5mmΦ29.5mm
Depth49mm76mm101mm103.5mm95mm103mm103.5mm
Order No.0304891078030489108003048910560304891054030480560803048910640304891070
